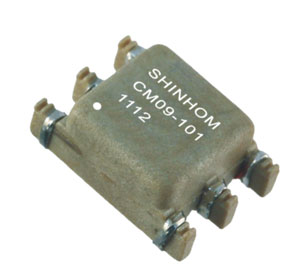

Features
Low Profile - 3mm
Designed for Frequencies from 75 kHz to over 1 Mhz
Suiteable for Pick and Place applications
Applications
Gate Drive Transformer
AC/DC and DC/DC Converters
Pulse/Signal Transformers
Features
Meets medical VDE creepage/clearance
Optimized for frequencies from100 kHz to 350 kHz
Suitable for pick and place applications
Applications
Gate Drive Transformer
AC/DC and DC/DCConverters
Signal Transformer Across Isolation Barrier
Features
Smallest size available on the market
Designed for frequencies from500 kHz to over 1 Mhz
Flat top for pick and place applications
Multiple turns ratios availble
Applications
Voltage Regulator Modules
High Frequency AC/DC and DC/DC Converters
Pulse/Signal Transformers
Multiple turns ratios availble
Features
Meets medical safety isolation requirements
Designed for frequencies from20 kHz to 300 kHz
Available in UL Class F (155??) orEconomical Class B (130??) Versions
Applications
Gate Drive Transformer
Signal Transformer AcrossIsolation Barriers
Off-Line AC/DC Converters
High-Powered DC/DC Converters
